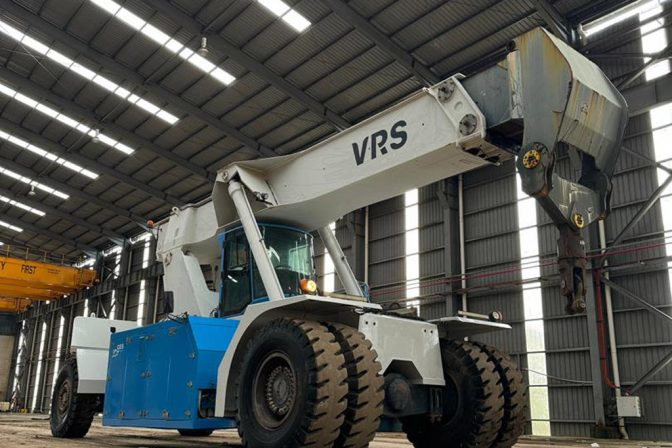

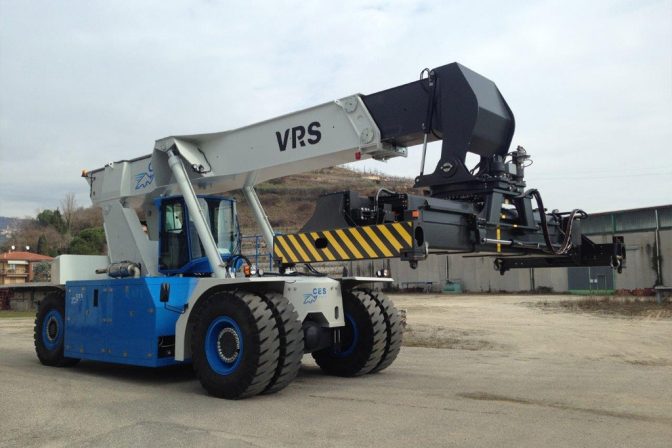

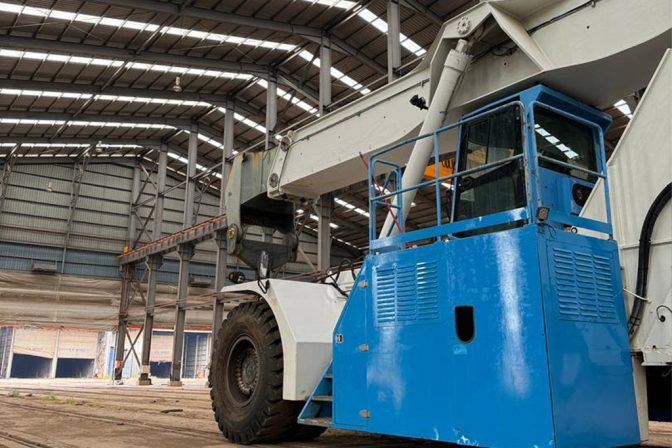

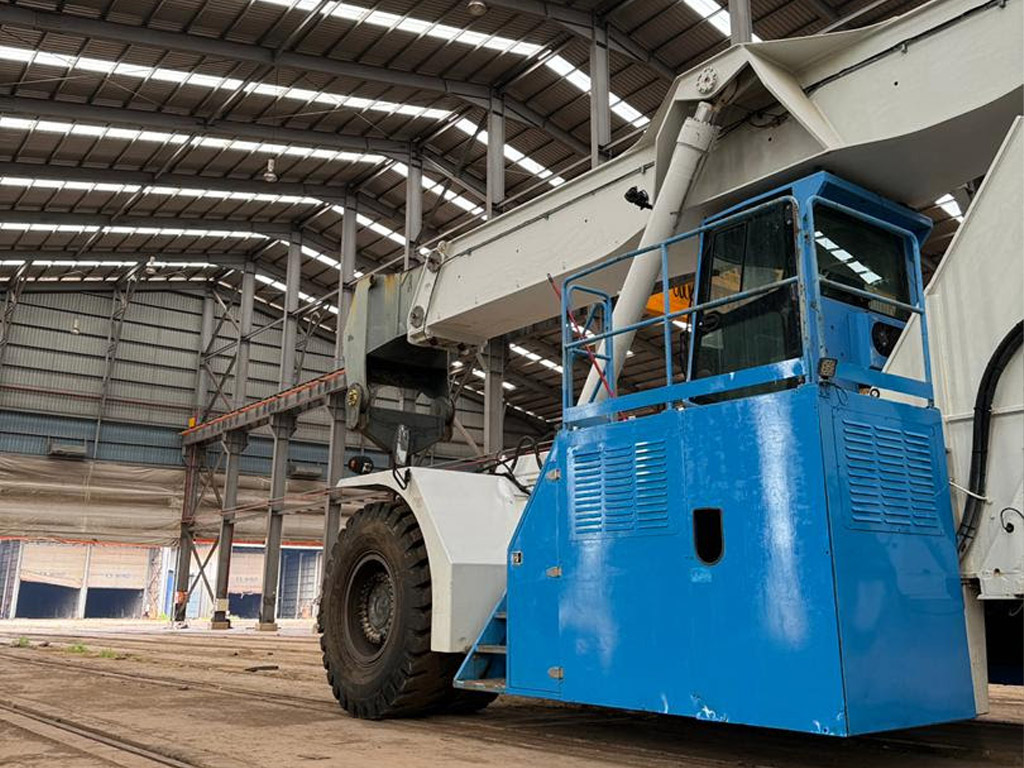

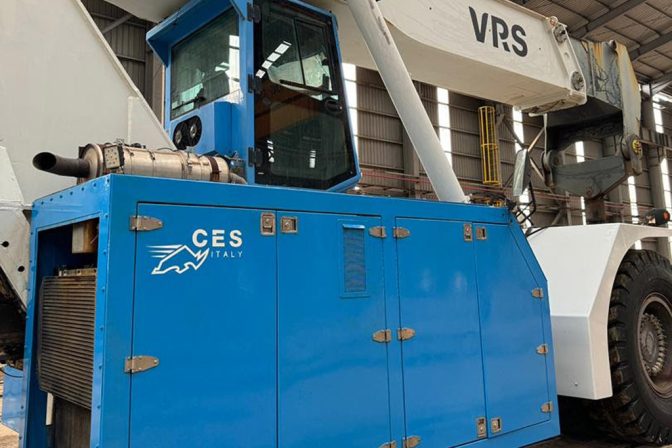

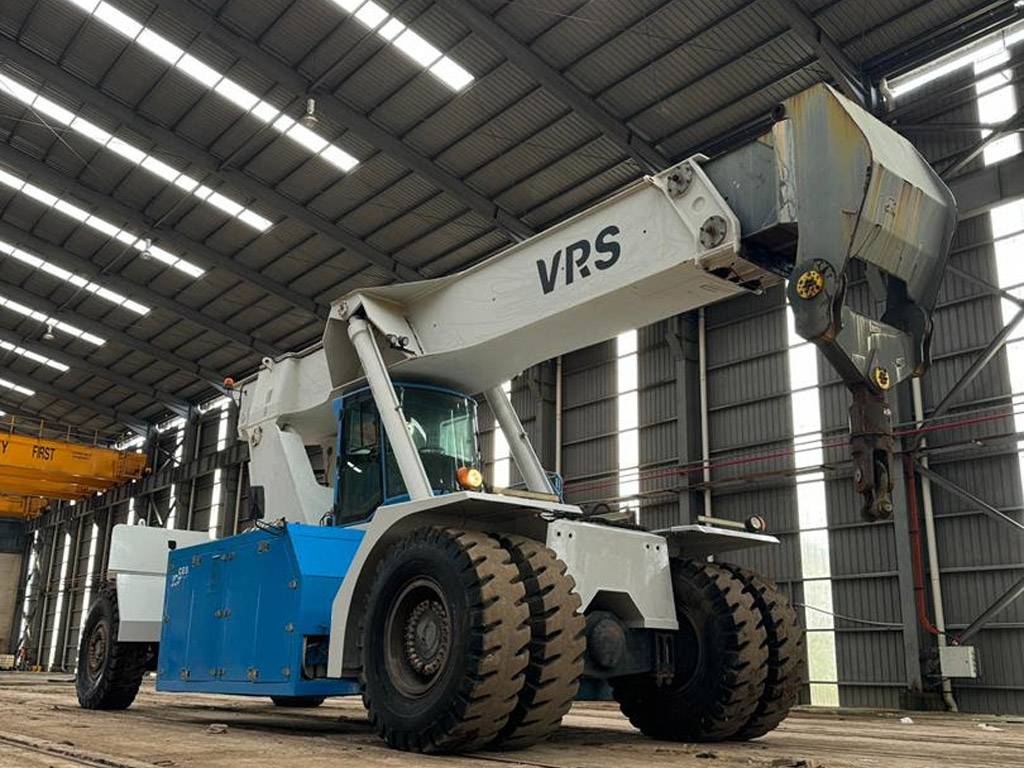

Used Reach Stacker in Dubai – CES VRS 100 Ton

Used CES VRS 100 Ton Reach Stacker for Sale in Dubai | Heavy‑Duty Container Handler Made in UK (2017)

Overview

For buyers searching for maximum lifting power and operational reliability, this CES VRS 100‑Ton Reach Stacker is the perfect heavy‑lift solution.

Built by Container Equipment Specialists (CES, UK) — a trusted European manufacturer recognized for advanced engineering quality — this 2017 unit offers massive 100‑ton capacity, low operating hours (just 3,400 h), and comprehensive refurbishment ready for continuous port and industrial operations in Dubai and across the GCC.

From oversized containers to project cargo or heavy machinery, the CES VRS 100T performs with precision, efficiency, and comfort — engineered to thrive in hot, dusty, or humid Middle‑Eastern conditions.

---

Technical Specifications

• Manufacturer / Model: CES VRS Reach Stacker (Heavy Lift Series)
• Year: 2017  Origin: United Kingdom
• Operating Hours: 3,400 – Low Usage (Verified Service Record)
• Rated Load Capacity: 100,000 kg (100 Ton) – first row
• Maximum Lift Height: Up to 12.5 m (5 containers high)
• Engine: High‑output Diesel (Scania DC13 or Volvo D13 series equivalent) – Euro Stage IIIA / EU Stage IV compliant

• Power Output: 300 – 340 kW (400 – 455 HP)

• Max torque: ≈ 2,100 Nm @ 1,200 rpm

• Transmission: Hydrostatic or Automatic PowerShift (Dana / ZF 4F‑4R) – smooth directional control
• Hydraulic System: Load‑sensing piston pump, rated 320 bar pressure, precision valving, multi‑function joystick with fine control
• Chassis: Box‑frame reinforced high‑tensile steel design for continuous heavy operation
• Axles: Kessler HD planetary axles with oil‑cooled disc brakes
• Steering: Hydrostatic rear wheel steering with electronic feedback and tight turning radius (< 9.5 m)
• Tyres: 18.00 × 25 port‑grade (heat & cut‑resistant)
• Fuel Tank Capacity: 750 L  Hydraulic Tank: 950 L
• Operating Temperature Range: –20 °C to +50 °C (tropical cooling kit included)
• Electrical System: 24 V with CAN‑Bus diagnostics and digital display
• Operating Weight: ≈ 95,000 kg

---

Performance Highlights

• Lift Speed (no load / full load): 0.40 / 0.26 m per second
• Travel Speed (no load / full load): 25 / 21 km/h
• Stacking Capability: ISO 20’, 40’, 45’ and oversized project cargo up to 12 m length.
• Boom Design: Heavy‑section hydraulic boom with precision side‑shift ± 800 mm and spreader rotation ± 195°.

---

Key Advantages & Benefits

✅ Extreme Lifting Power & Versatility

Handles not only standard containers but also transformers, coils, pipes, and prefabricated construction units up to 100 tons.

✅ Exceptional Value for Money

With only 3,400 operating hours and full mechanical refurbishment, this unit offers a lifetime of service at a fraction of the cost of a new machine.

✅ Fuel‑Efficient Operation

Hydrostatic drive and load‑sensing hydraulics provide power on demand – cutting fuel consumption by 10–15% in busy port cycles.

✅ Operator Comfort & Cab Design

360° visibility through anti‑glare panoramic glass cabin; air suspension seat; noise level under 70 dB; HVAC system for Gulf weather; digital hydraulic monitoring and joystick controls for precision work.

✅ Reliability in Desert and Coastal Environments

Dust‑sealed filters, high‑capacity radiator, and anti‑corrosion paint extend component life under harsh Dubai climate.

✅ Dual‑Purpose Functionality

Acts as both a reach stacker and a pick & carry crane, eliminating the need for separate cranes for project cargo handling.

---

Applications Across Industries

• Port Container Handling: Bulk and project cargo at Jebel Ali and Abu Dhabi terminals.
• Rail Terminals & Logistics Hubs: Efficient loading and multi‑row stacking.
• Construction & Infrastructure Projects: Lifting structural steel, bridge segments, and prefab sections.
• Mining & Energy Sectors: Transporting pipes, drilling rig modules and heavy equipment.
• Oil & Gas Facilities: Safe movement of large assemblies and containers across onshore fields.

---

Operator Experiences & Feedback

Experienced operators across UAE ports and industrial zones describe the CES VRS 100T as:

“Unbelievably stable even with full‑load containers at maximum height — the hydraulics feel precise and smooth.”

“Cab comfort is excellent: low vibration, great visibility, and a cool AC that really matters in Dubai heat.”

“Maintenance is straightforward; hydraulic oil intervals are long and engine access is generous. It’s a real workhorse.”

These first‑hand experiences testify to the machine’s blend of European engineering and field‑proven performance under Gulf conditions.

---

Condition & Availability

📍 Location: Dubai, United Arab Emirates

⚙️ Condition: Used – Fully Inspected & Operational

⏱️ Operating Hours: 3,400 (h)

🚚 Availability: Immediate Delivery or Export to GCC / Africa / Asia

🌐 Supplier: KIANI MEHR LLC – Port & Heavy Equipment Division
