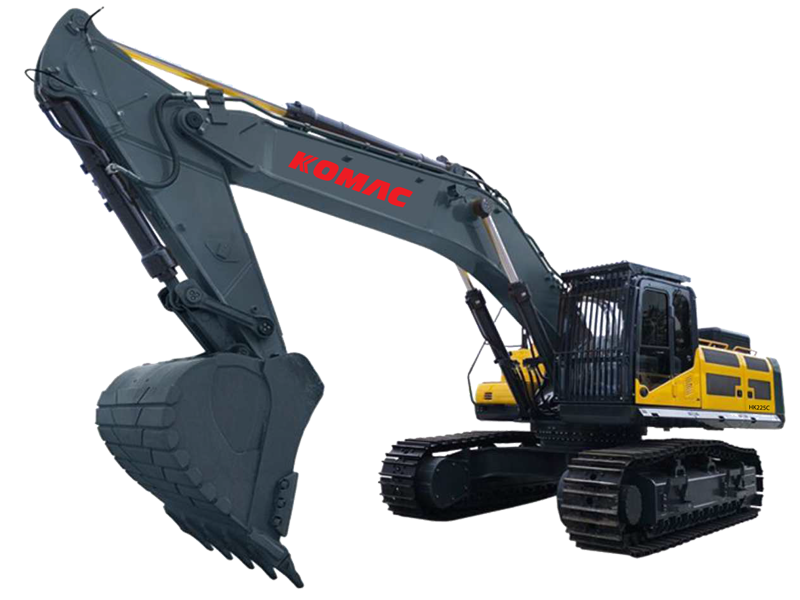

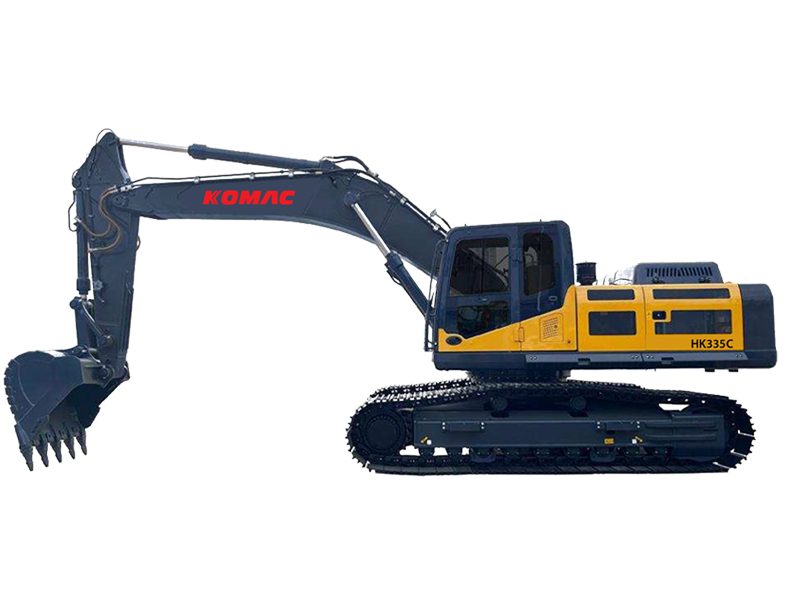

Large Crawler Excavators – Power Beyond Limits
For Sale – Dubai & Abu Dhabi | KIANI MEHR LLC (UAE)
Overview
The Large Crawler Excavator Line from KIANI MEHR LLC represents the ultimate solution for high‑capacity earthmoving and mining operations.
With operating weights typically between 30 – 45 tons, these machines are engineered for maximum productivity, efficiency, and structural endurance.
Designed for long‑hour performance and heavy load cycles, they guarantee the power, reach, and reliability demanded in megaprojects across the Middle East.
Applications
Large Crawler Excavators are ideal for:
- Mining, quarrying, and rock extraction
- Heavy civil works and infrastructure development
- Road construction, bridge foundations, and deep trenching
- Bulk earthmoving, sand removal, and industrial site preparation
- Port and loading operations requiring high lift and reach capacity
Their massive digging power, extended reach, and high structural stability make them irreplaceable for mega‑site operations and continuous loading tasks.
Performance Highlights
(Typical specifications for the 30–45 ton range)
- Operating Weight: approx. 30,000 – 45,000 kg
- Engine Output: 165 – 270 kW (≈ 220 – 360 HP)
- Fuel Tank Capacity: 550 – 700 liters
- Bucket Capacity: 1.4 – 2.5 m³ (rock / GP bucket options)
- Max. Digging Depth: up to 7.5 – 8.2 m
- Max. Reach: 10.5 – 11.5 m
- Bucket Force: 180 – 220 kN
- Swing Speed: 9 – 10.5 rpm
- Gradeability: 35°–40°
- Travel Speed: up to 5.0 km/h
Designed for productivity under pressure, these excavators deliver fast digging cycles and efficient material loading into heavy dump trucks or crushers.
Hydraulic System
Each unit is equipped with high‑output variable piston pumps capable of maintaining stable pressure and flow even during multi‑function operation.
Optimized oil pathways and load‑sensing controls provide smoother boom response, energy savings, and higher precision for both digging and lifting tasks.
Hydraulic system pressure typically ranges between 34 – 36 MPa, ensuring powerful breakout performance.
Cab Design & Operator Experience
Power without comfort has no value in modern engineering — that’s why Large Crawler Excavator cabs are designed around the operator.
- ROPS/FOPS‑certified safety cabin
- Ergonomic control layout with joysticks and adjustable seat suspension
- Automatic temperature control (A/C) suited for GCC climates
- Panoramic 360° visibility aided by rear‑view and side cameras
- Digital multi‑function monitor with real‑time diagnostics (fuel, oil, hydraulics, and service alerts)
- Noise‑reduction insulation and shock‑absorbing mounts provide long‑hour comfort on mine or desert sites.
Operators experience a stable, quiet, and fatigue‑free environment, resulting in higher accuracy and efficiency per shift.
Structural & Maintenance Advantages
- Reinforced boom and stick engineered from high‑quality alloy steel.
- Heavy‑duty undercarriage and track frames for durability in rocky terrain.
- Spacious access panels simplify maintenance and service intervals.
- Optional quick coupler and hydraulic breaker lines increase versatility.
- Advanced filtration systems extend hydraulic oil and fuel life under dusty desert conditions.
Key Benefits
✅ Massive digging power and fast operating cycles
✅ Tier 3/4 engines with improved fuel performance
✅ Heavy‑duty frame for mining and large infrastructure works
✅ Outstanding cabin safety, visibility, and operator comfort
✅ Easier maintenance and reduced total cost of ownership
✅ Guaranteed reliability for Dubai / Abu Dhabi heavy projects
💠 Available Now – Ready for Delivery Across UAE
KIANI MEHR LLC – Heavy Equipment Division
