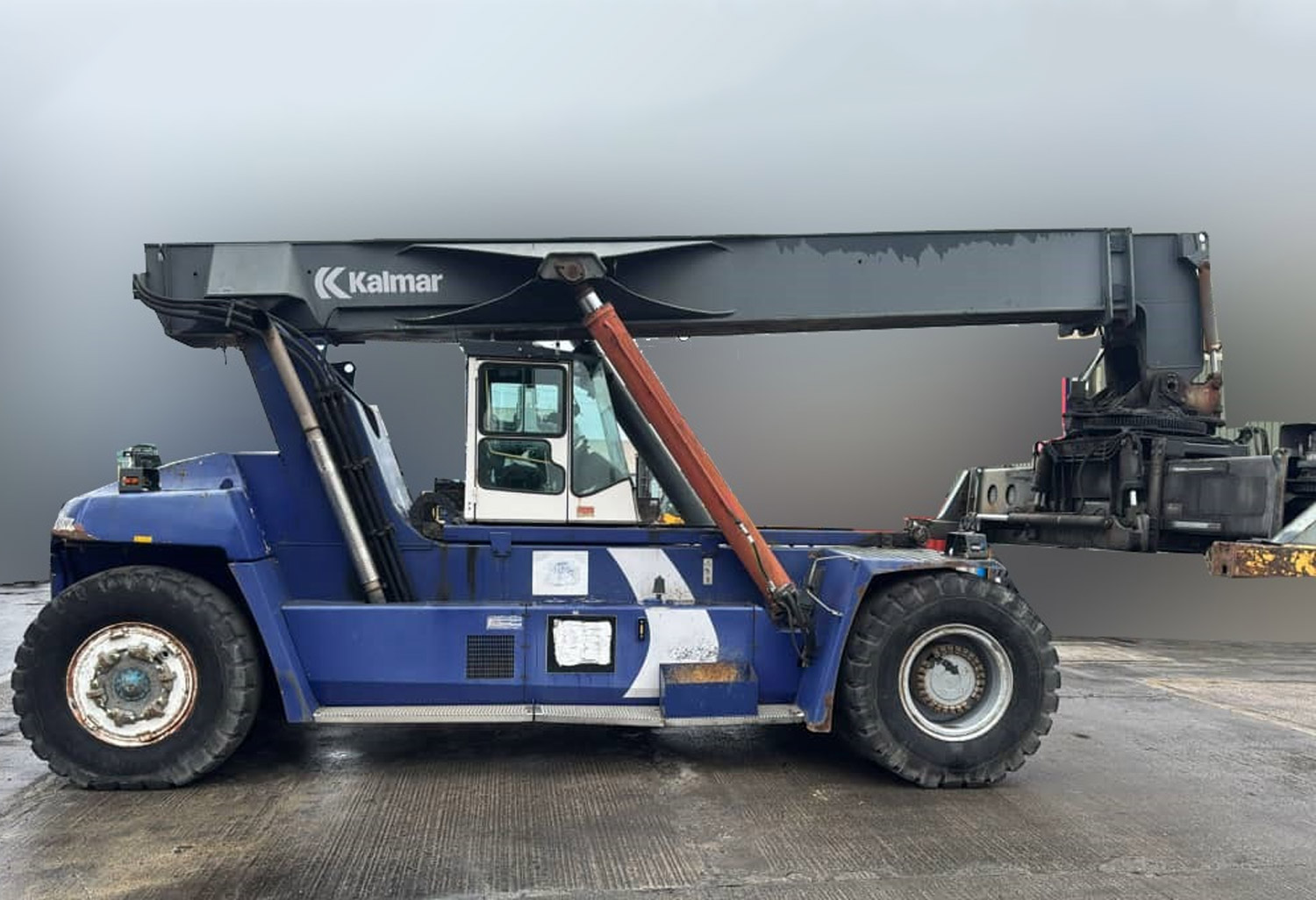

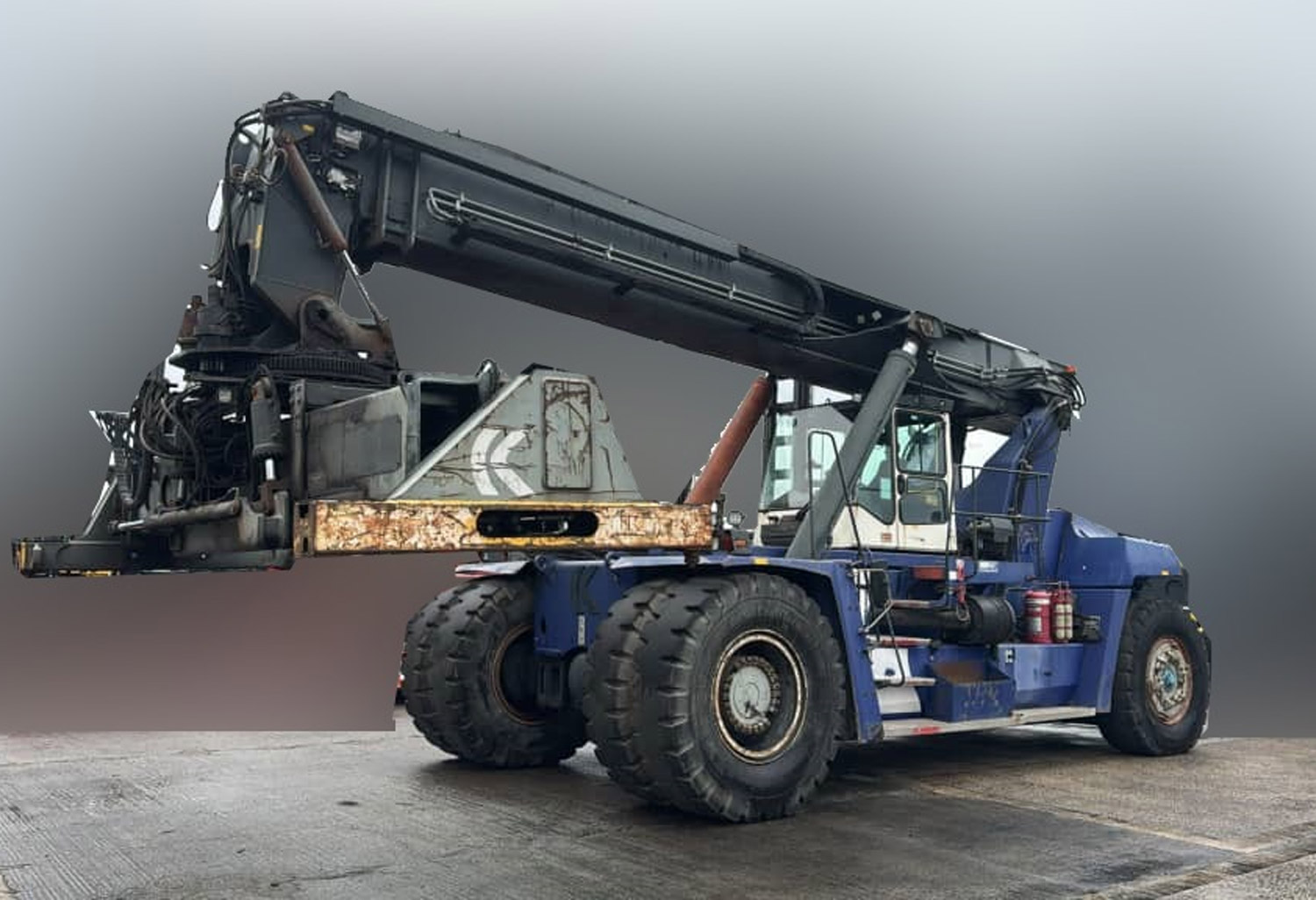

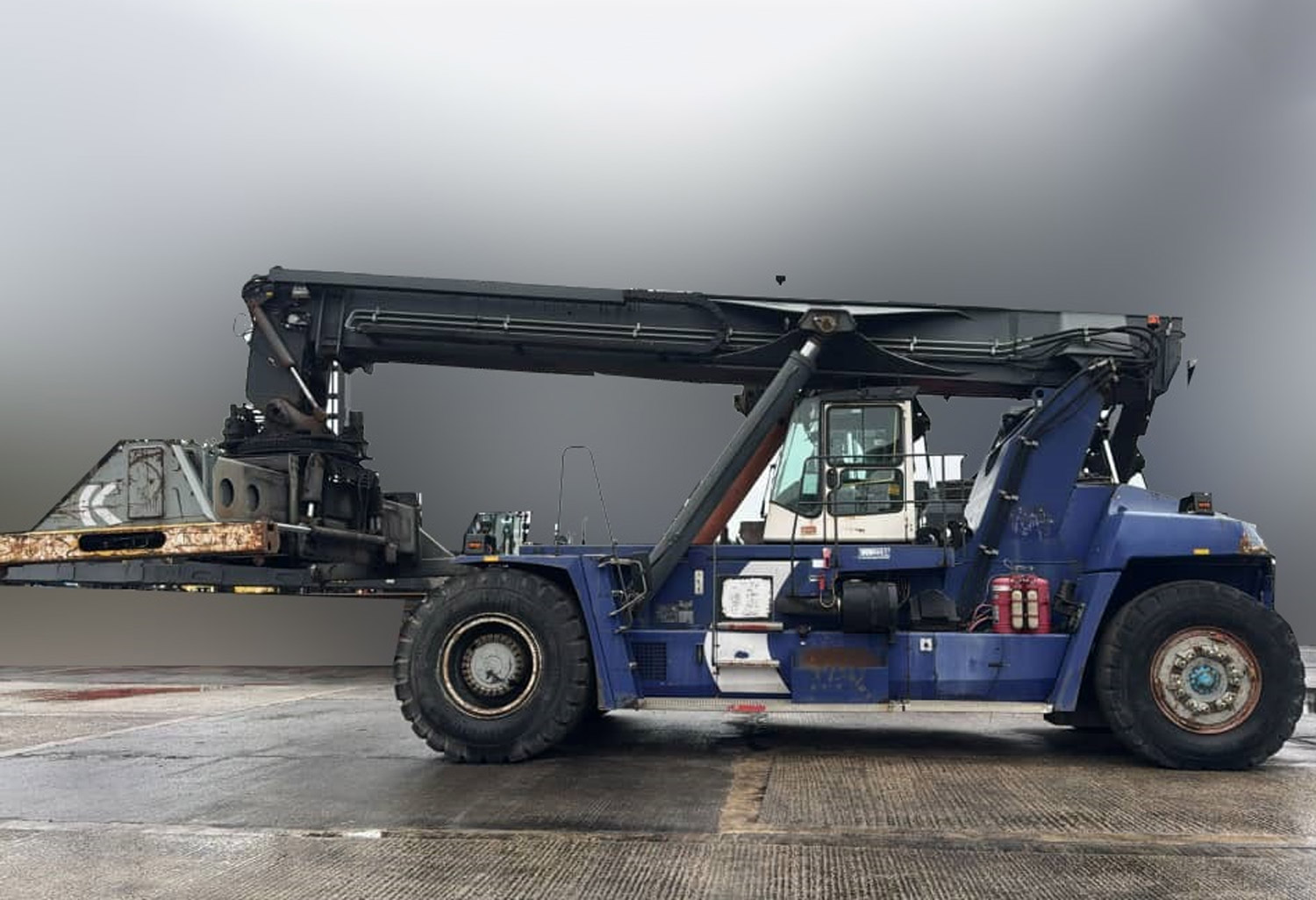

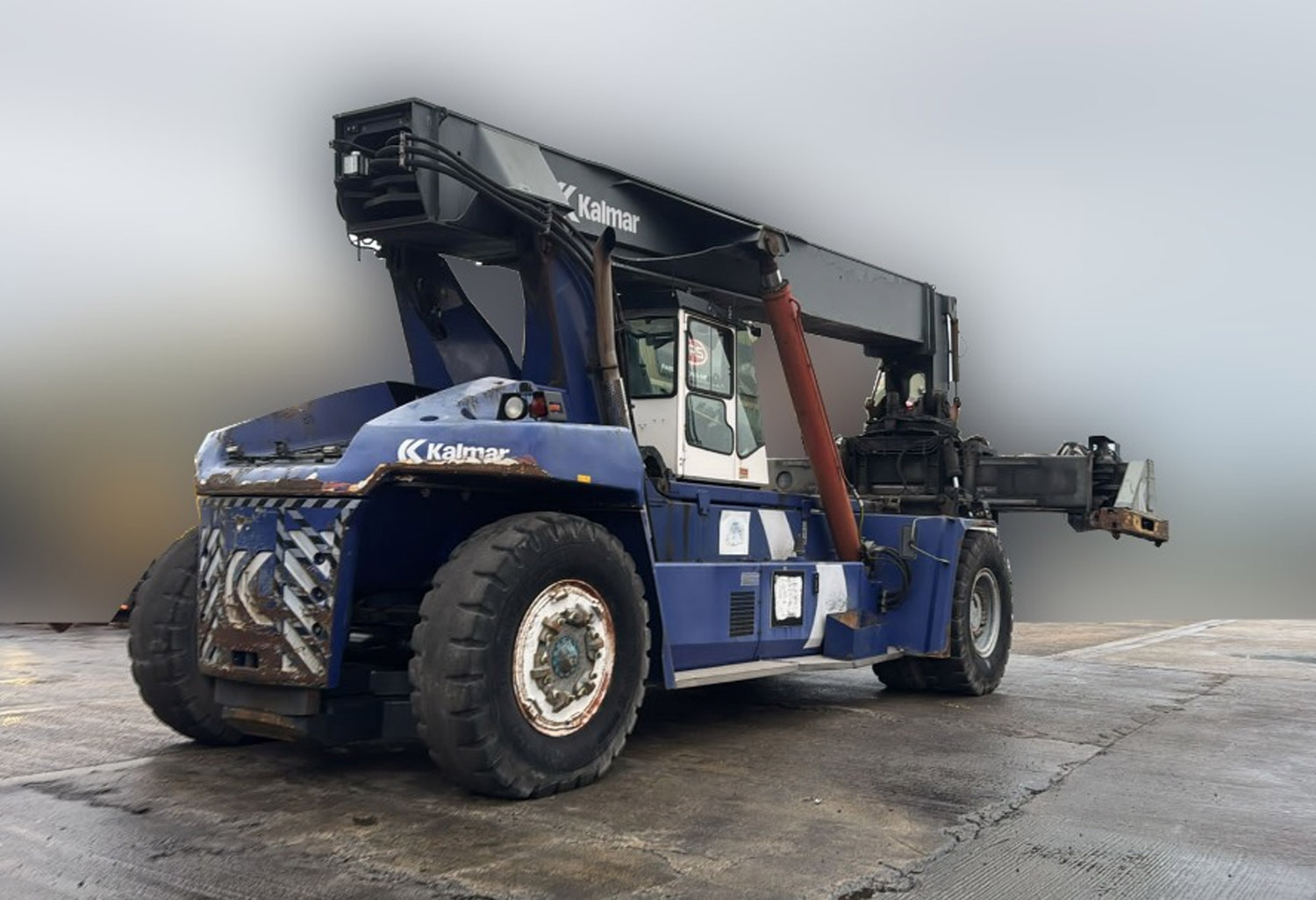

Used Kalmar DRF450‑65S5 Reach Stacker

Used Kalmar DRF450‑65S5 Reach Stacker for Sale – Dubai Market (45 Ton Capacity)

High‑Performance Container Handler Designed for Heavy‑Duty Port Operations

The Kalmar DRF450‑65S5 Reach Stacker (2008 model) is one of the world’s most trusted heavy‑duty machines in container handling and logistics terminals. Built in Finland under Kalmar’s Series D, this reach stacker is engineered to deliver maximum durability, precise control, and operational efficiency even in the most demanding port conditions.

With a lifting capacity of 45 tons, it is ideal for container yards, inland depots, rail terminals, industrial ports, and logistics hubs across the UAE and GCC region.

Key Advantages

Powerful & Reliable Volvo Engine

Equipped with a Volvo TAD940VE 6‑cylinder turbo diesel, delivering 340 HP (250 kW), the DRF450 provides excellent torque, low fuel consumption, and long‑term reliability under continuous operation.

Heavy‑Duty Stability & Precision

The Kessler D91 drive axle, together with an advanced Dana Clar Spicer 4‑speed powershift transmission, ensures smooth gear transitions, outstanding traction, and precise load control during stack movements.

Ergonomic EGO Cabin for Operator Comfort

The EGO cabin is designed for maximum visibility and comfort — featuring A/C climate control, an adjustable suspension seat, clear digital display, and low noise/vibration operation — ideal for long shifts in Dubai’s working conditions.

Advanced Hydraulic System

The load‑sensing variable displacement hydraulic pump provides faster cycle times, improved fuel efficiency, and accurate control, allowing efficient stacking up to 6 containers (15.1 m height).

Built for Harsh Environments

This model is fully equipped for hot and dusty climates. Its robust filters, dual‑circuit cooling, and solid‑steel mast ensure continued performance even in UAE’s industrial and port zones.

Technical Specifications

Model: DRF450‑65S5 (Series D Reach Stacker)

•  Lifting Capacity: 45 tons (Front 1st row 45 T / 2nd row 27 T / 3rd row 13 T)
• Year of Manufacture: 2008
•  Operating Hours: ≈ 12,000 hrs
•  Engine: Volvo TAD940VE – 6 Cylinder Turbo Diesel
•  Engine Power: ≈ 250 kW / 340 HP @ 2200 rpm
•  Transmission: Dana Clar Spicer – Automatic (4‑speed powershift)
•  Drive Axle: Kessler D91 – Heavy Duty Axle with oil‑immersed brakes
• Wheel base: 6,000 mm
• Total Weight: ≈ 69,000 kg
• Tires: 18.00‑25 – Pneumatic Heavy Duty (Front twin / Rear single)
• Hydraulic System: Load‑sensing variable displacement pump with electronic control
• Mast Type: Telescopic Boom – Top lift spreader (20’–40’ ISO containers)
• Lifting Height: up to 15.1 m (6 containers stack height)
• Spreader Type: ELME 817 Top Lift Spreader with Side Shift & Rotation
• Steering: Hydraulic power steering with multi‑mode (2‑wheel / All‑wheel steer)
• Braking System: Hydrostatic service brake + spring‑applied parking brake

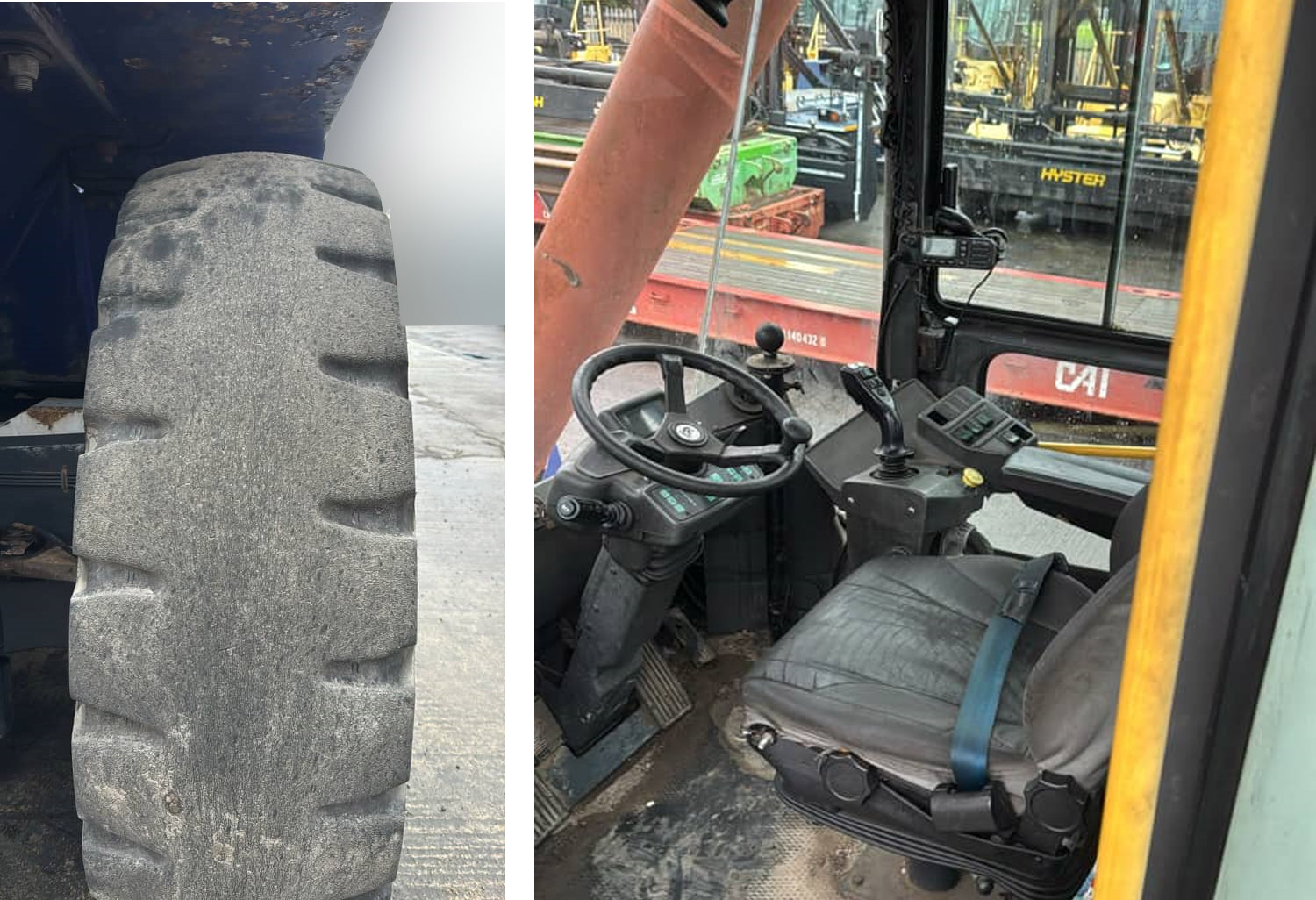

• Cabin: EGO ergonomic operator cab, A/C climate control, adjustable seat, wide visibility
• Fuel Tank Capacity: ≈ 600 liters
• Average Fuel Consumption: 15–22 L/h depending on load cycle

Applications

• Port terminals and container yards
• Rail and inland depots
• Heavy logistics operations in free zones (JAFZA, KIZAD, Sharjah)
• Industrial sites requiring high throughput handling

Why Choose This Kalmar DRF450‑65S5?

• Proven reliability in extreme conditions
•  Strong resale value and easy service availability in UAE
•  Ideal for companies expanding port or yard capacity on budget
•  Immediate delivery from Kiani Mehr Trading LLC – Dubai

📞 Contact Now

Kiani Mehr Trading LLC – Kalmar Used Equipment Division, Dubai
